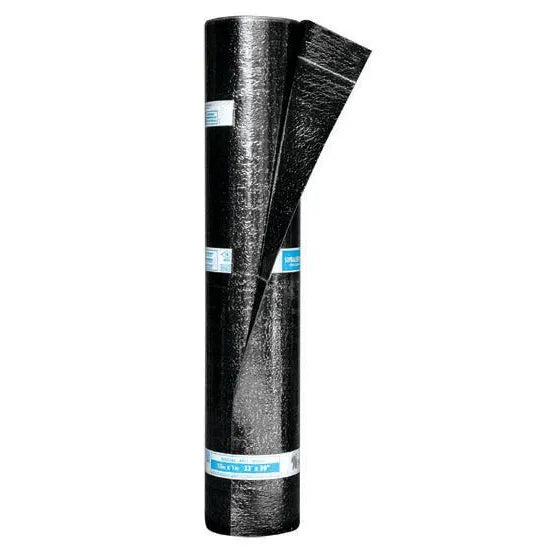

SOPREMA COLPHENE® FLAM 180 – SBS-Modified Bitumen Waterproofing Membrane

COLPHENE® FLAM 180 is an elastomeric SBS-modified bitumen cap ply designed for use in approved multi-ply waterproofing assemblies. It is composed of a proprietary formulation of SBS polymer-modified bitumen and is reinforced with a tough, dimensionally stable non-woven polyester mat. Both the topside and underside are surfaced with polyolefin burn-off film to optimize heat welding.

Key Features:

• Material: SBS-modified bitumen

• Reinforcement: Non-woven polyester

• Topside Finish: Polyolefin burn-off film

• Underside Finish: Polyolefin burn-off film

• Thickness: 114 mils (2.9 mm)

• Installation Method: Heat welded

• ASTM Standard: D6164, Type I, Grade S

• Application: Approved for use in multi-ply waterproofing assemblies

Installation Guidelines:

1. Preparation: Unroll COLPHENE® FLAM 180 onto the surface and allow it to relax.

2. Positioning: Position the membrane in the desired location and back roll the product.

3. Heat Welding: Heat weld COLPHENE® FLAM 180 to approved substrates.

4. Additional Guidelines: Refer to SOPREMA® specifications and installation instructions for further application guidelines.

Benefits:

• Cold Weather Application: Installation is possible even in cold weather conditions.

• Durability: Excellent puncture and tear resistance.

• Made in Canada: Manufactured in Canada, ensuring high-quality standards.
