Colphene Stick GR

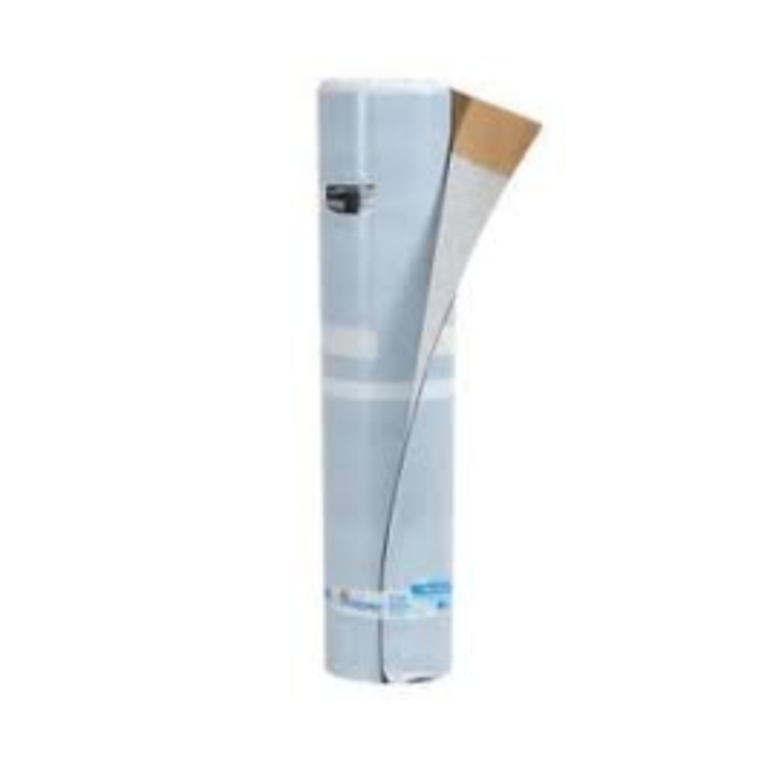

COLPHENE® STICK GR – SBS-Modified Bitumen Self-Adhered Cap Ply

COLPHENE® STICK GR is a self-adhered, SBS-modified bitumen cap ply designed for use in multi-ply membrane roof waterproofing and flashing assemblies. It features a topside surfaced with ceramic-coated granules and an underside with a protective polyolefin release film that is removed during application. The membrane is reinforced with a tough, high-quality random glass fiber mat.

Product Properties:

• Material: SBS-modified bitumen

• Reinforcement: Random glass fiber mat

• Thickness: 134 mils (3.4 mm)

• Topside Finish: Granules

• Underside Finish: Polyolefin release film

• Installation Method: Self-adhered

• ASTM Standard: ASTM D5147

Installation Guidelines:

1. Unroll: Allow the membrane to relax on the roof surface.

2. Position: Place the membrane in the desired position.

3. Remove Release Film: Peel off the protective release film from the underside.

4. Apply: Roll the membrane into place using a weighted roller to ensure full adhesion.

Testing & Approvals:

• ASTM D5147: Complies with ASTM D5147 standards for SBS-modified bitumen roofing materials.

Related Products:

• COLPHENE® LM BARR Spray: A single-component, 95% solids content, liquid-applied, moisture-curing elastomeric waterproofing membrane.

• COLPHENE® SANDED: An SBS-modified bitumen cap ply reinforced with a high-quality, random glass fiber mat, surfaced with fine mineral aggregate to facilitate cold-adhesive applications.
